Product Overview

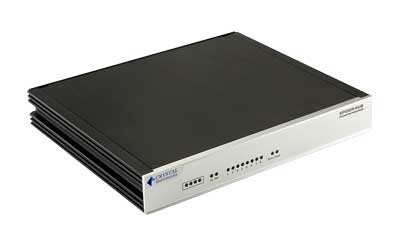

Designed and manufactured by Crystal Instruments, the Spider-HUB Industrial Ethernet Switch supports the latest IEEE 1588v2 technology to fulfill precision time synchronization requirements for data acquisition and control applications. The Spider-HUB guarantees time-stamping accuracy within 50 nanoseconds and can be configured for 1588v2 Master, Boundary Clock, and Transparent Clock functionality.
Modular Design

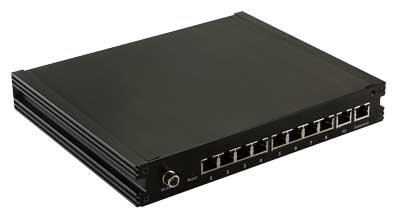

With a total of ten Ethernet ports, the modular design of the Spider-HUB makes network planning easy, allowing for greater flexibility and quick expansion of multiple switches. Along with a choice of either front or rear wiring, its small size footprint and low energy consumption make the Spider-HUB suitable for a variety of industrial applications including high speed data acquisition and dynamic signal measurement.
Learn MoreKey Features
For further information and detail on the Key Features for this Product, please contact our specialist sales team on:
+44 (0) 1462 481859 or
Available Options
For further information on options available for this Product, please contact our specialist sales team on:
+44 (0) 1462 481859 or
Resources
Please contact our specialist sales team on:
+44 (0) 1462 481859 or
Contact Us via THP-Systems.com
to request a Datasheet or Brochure.
Request Quote
Please select the form below relevant to your enquiry:
Specifications
-
Ethernet Ports: 10 ports (RJ45), supports up to 8 Spider-80X front-ends
-
Performance: 10, 100, and 1000 Mbit/s line speed full or half duplex and autosensing of 10, 100, and 1000 Mbit/s port speeds. Optionally programmable to fixed port speed, speed matching between 10, 100, and 1000 Mbit/s ports.
-
Power Connector: 2.5 mm center-pin power jack
-
System Power Consumption: Average 21 watts, max 25 watts
-
Size: 35 mm x 243 mm x 177 mm
-
Weight: 1.28 kg
