Crash Wall SolutionsProduct Overview

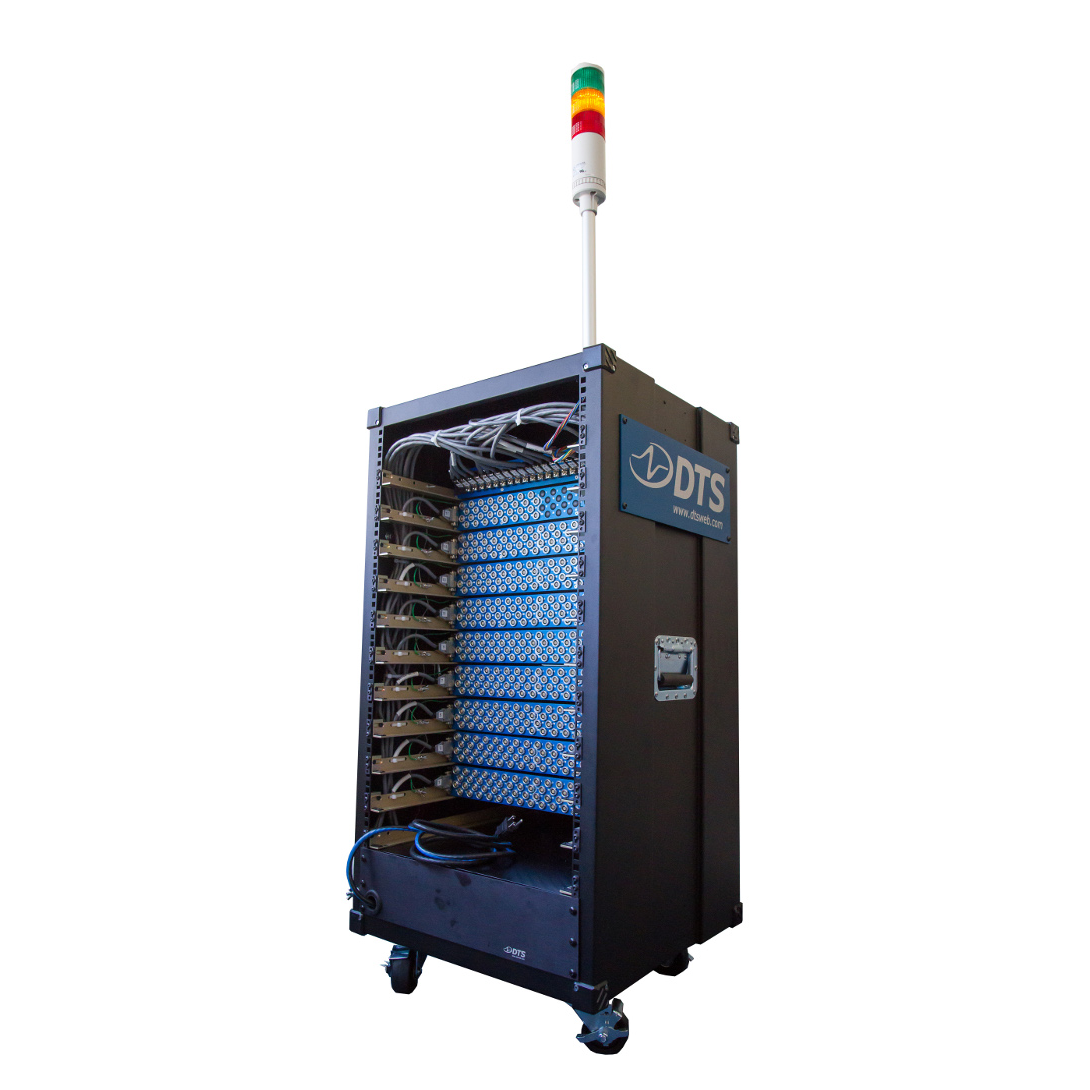

The Lab cart can hold up to 20 TDAS G5 DAS giving a maximum capacity of 640 channels. The Portable Barrier Wall DAS system is designed to give organisations high resolution and enable them to accurately assess how one vehicle will interact with another in a crash. The DTS TDAS G5 data acquisition system has a proven performance track record and is extremely reliable in gathering high speed crash test data.
The 32-channel TDAS G5 DAS module was designed as the original in the dummy data acquisition system for the ISO World Side Impact Dummy (WorldSID). Its small size
(25 x 54 x 85 mm), low mass (200 grams), high shock rating (500 g) and high sampling capabilities (100 ksps/channel) have earned the system praise by customers worldwide.
Another key feature of the TDAS G5 DAS is that it easily moves from in-dummy to on-vehicle to load wall, making it a top choice for laboratories running a variety of test configurations.

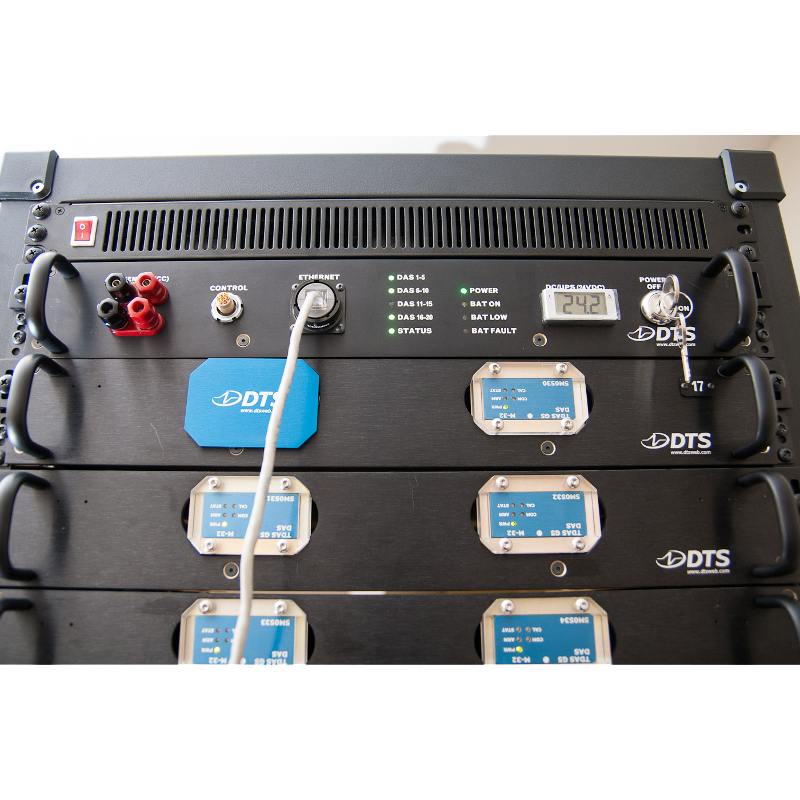

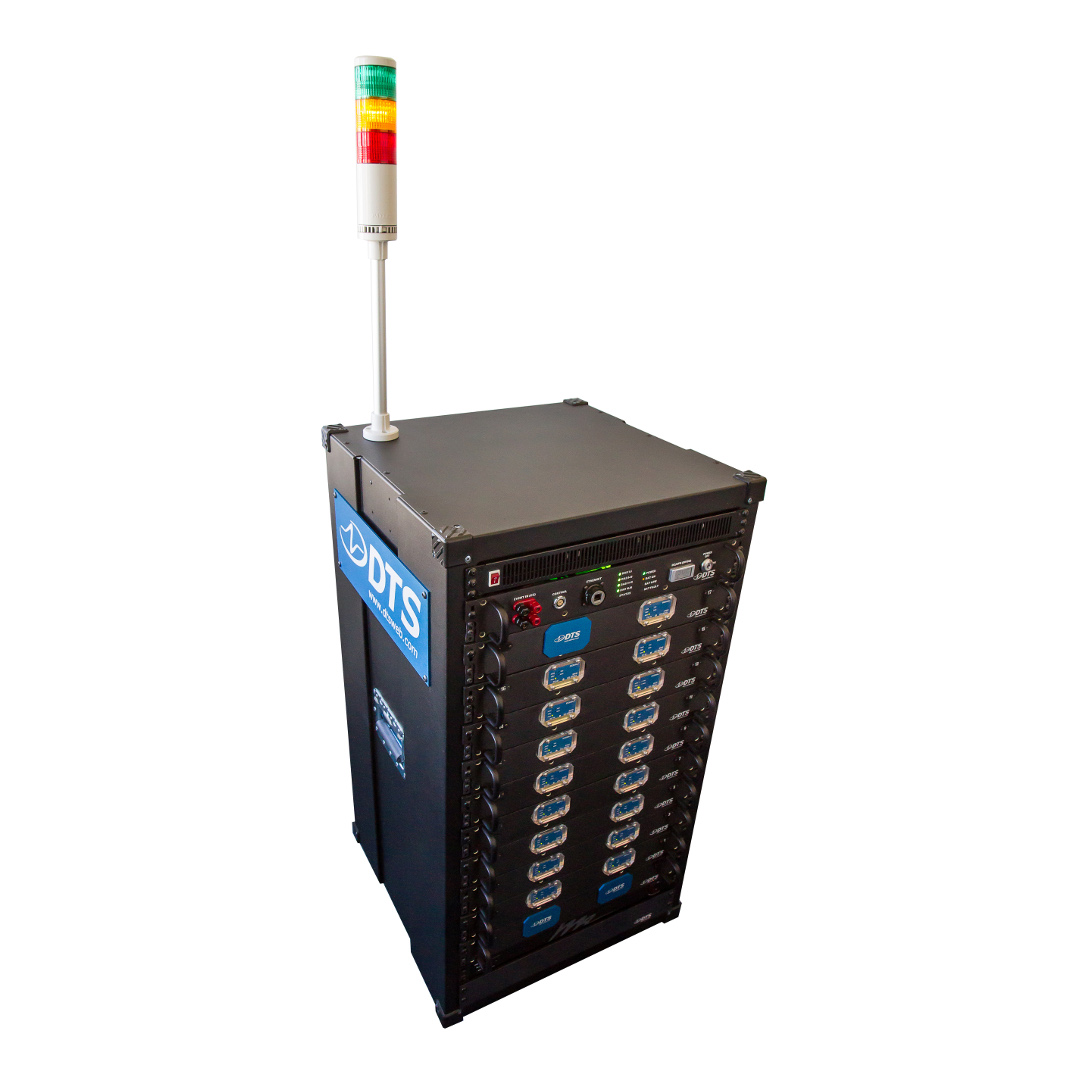

The physical unit is compact and on a rolling cart for easy configuration with easy to see visual status indicator lights.
Learn MoreKey Features
- Sampling rates up to 100 ksps/ch
- TDAS G5 shock rated up to 500 g
- High-bandwidth option
- DAS can be moved to in-dummy and on-vehicle
- Modular, portable, custom-configurable systems
- Software that’s fast and easy
- Comprehensive self-diagnostics & fault detection
- Real-time, logging, viewing and ex
