Product Overview

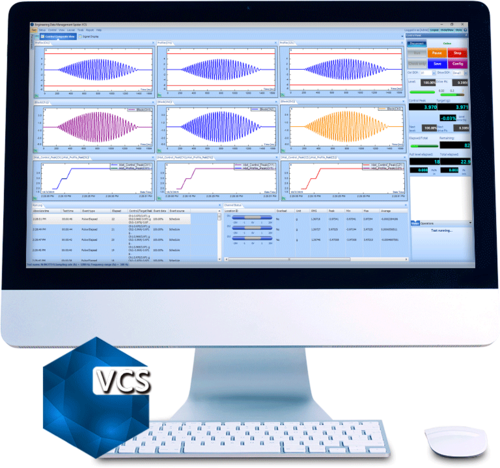

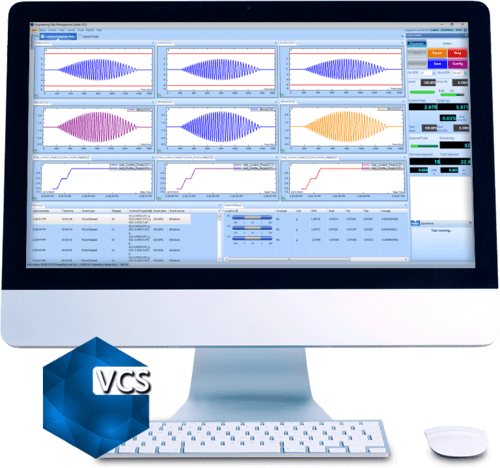

Multiple-Input Multiple-Output TTH VCS
Using template based importing tools, time waveform in various formats are imported into EDM VCS. Scaling, editing, digital re-sampling, high-pass, low-pass filtering, and compensation will tailor the waveform and duplicate it on a shaker. Compensation methods include pre-pulse, post-pulse, DC removal and high-pass filters. Supports up to 512 input channels
Learn MoreKey Features
Continuous Data Recording
During vibration control, all measurement input and drive signals can continuously record to a Spider-NAS or the internal storage residing in each front-end. Users can view and analyze data files with Crystal Instruments Post Analyzer. The variable sampling rate can be enabled to simultaneously record slow-change signals together with high speed vibration data.
Safety Features
- Abort Sensitivity: a single parameter allows the ensitivity and tolerance of various safety checks to be asily adjusted between customizable lower and upper bounds
- Shaker Safety Limits: limits for shaker acceleration, velocity, and displacement
- Open Loop Detection: open loop detection for control signal and each input channel. Detection is based on maximum control loss or maximum RMS rate of change in the input channels.
- Control Limits: enforces abort time limits for control signals. Allowable ratio of points exceeding abort limits to total number points in a frame: 0 – 100%
- Max Drive Limit: maximum voltage limit for drive output
- Time Domain Limit: Raw, or RMS to any input channel
Available Options
For further information on options available for this Product, please contact our specialist sales team on:
+44 (0) 1462 481859 or
Resources
MIMO BrochureRequest Quote
Please select the form below relevant to your enquiry:
Pre-stored Profiles
Pre-stored profiles include Bellcore Z1 & Z2, Bellcore Z3, Bellcore Z4, (Burst) Sine, Triangle, Chirp, Burst Chirp, White Noise (Burst Random), Sine Beat, Sine Beat (multiple frequency), Door Slam (Ford), Decay sine (linear/angular frequency), Sine Burst.
The additional option required to run profiles with sampling frequency lower than 120 Hz is included by default since EDM 7.0. Supports up to 512 input channels.
Hardware
- Spider-80M – MIMO Vibration Control System
Software
- MIMO Shaker Systems
- MIMO Random Vibration Control
- MIMO Sine Vibration Control
- MIMO Shock Vibration Control
- MIMO Shock Response (SRS) Vibration Testing
- MIMO Time Waveform Replication (TWR) Vibration Testing
Monitoring Through EDM Cloud
All tests in EDM-VCS support status checks through EDM Cloud. With EDM Cloud support, users can set up any VCS test to upload live data or run logs for completed tests to a cloud storage space provided by Crystal Instruments, where data is securely stored in the user’s account.
The EDM Cloud website is located at https://cloud.go-ci.com. Users can access EDM Cloud from anywhere in the world to check the status of past and current tests. A secure login flow ensures the status can only be checked by authorized personnel with proper credentials. Multiple logins for accessing the same Cloud account is available.
