Product Overview

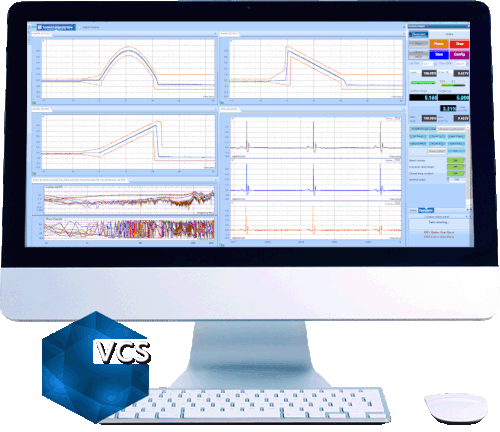

Multiple-Input Multiple-Output Shock VCS
The Spider MIMO Classic Shock Vibration Control System provides precise, real-time, multiple shaker table control and analysis for transient time domain control. Up to 8 output channels (shaker) can be enabled for control with individual classical shock waveform defined for each control channel, alarm checking, and time data recording on master module. Up to 512 channels can be enabled for controlling/monitoring and time data recording. Classical pulse types include half-sine, haver-sine, terminal-peak sawtooth, initial-peak saw tooth, triangle, rectangle, and trapezoid. The recording option records time stream data at the full sample rate on all input channels. Shock response spectrum analysis can be applied to any input signals.
Learn More- Key Features
- Options
- Resources
- Request Quote
- Control Parameters
- Reference Profile and Run Schedule
- Hardware
- Software
Key Features
For further information and detail on the Key Features for this Product, please contact our specialist sales team on:
+44 (0) 1462 481859 or
Available Options
For further information on options available for this Product, please contact our specialist sales team on:
+44 (0) 1462 481859 or
Resources
MIMO BrochureRequest Quote
Please select the form below relevant to your enquiry:
Control Parameters
- Sampling Rate: limits for shaker acceleration, velocity, and displacement
- Time Block Size: 512 to 65,536 points
- Average Number for Control: 1 – 4
- Correction Rate: 0.0 to 1.0
- Test Start Method: pretest runs with four excitation types: positive pulse, negative pulse, Random with close-loop control, Random with open loop. Pretest may be skipped with saved FRF’s
Reference Profile and Run Schedule
- Control Channel: selection of control channel for profile editing
- Use One Profile for All Control Channels: checkbox, same profile will be assigned to all control channel if checked
- Shock Wave Types: half-sine, haver-sine, terminal-peak saw tooth, initial-peak saw tooth, triangle, rectangle, and trapezoid
- Test Standards: MIL-STD-810F, MIL-STD-810G, MILSTD-202F, ISO 9568, IEC 60068, user-defined
- Compensation Shapes: half-sine, rectangular, double rectangular, rounded-rectangular or displacement optimum
- Compensation Locations: pre-pulse, post-pulse, or prepost compensation
- Profile Maximum: calculation of maximum expected acceleration, velocity and displacement, checked against shaker limits
- Abort Limits: according to testing standards or custom
- Profile Library: settings are saved to a library and reused in different tests
- Run Schedule: a schedule includes user-defined number of pulse entries and user-defined events
Hardware
- Spider-80M – MIMO Vibration Control System
Software
- MIMO Shaker Systems
- MIMO Random Vibration Control
- MIMO Sine Vibration Control
- MIMO TTH Vibration Testing
- MIMO Shock Response (SRS) Vibration Testing
- MIMO Time Wavveform Replication (TWR) Vibration Control
Continuous Data Recording
During vibration control, all measurement input and drive signals can continuously record to a Spider-NAS or the internal storage residing in each front-end. Users can view and analyze data files with Crystal Instruments Post Analyzer. The variable sampling rate can be enabled to simultaneously record slow-change signals together with high speed vibration data.
Monitoring Through EDM Cloud
All tests in EDM-VCS support status checks through EDM Cloud. With EDM Cloud support, users can set up any VCS test to upload live data or run logs for completed tests to a cloud storage space provided by Crystal Instruments, where data is securely stored in the user’s account.
The EDM Cloud website is located at https://cloud.go-ci.com. Users can access EDM Cloud from anywhere in the world to check the status of past and current tests. A secure login flow ensures the status can only be checked by authorized personnel with proper credentials. Multiple logins for accessing the same Cloud account is available.
