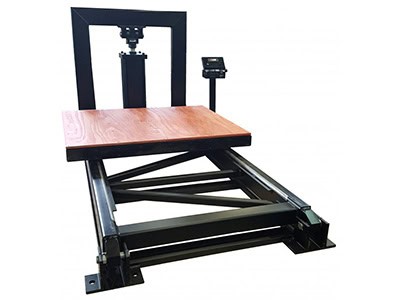

Incline Impact testers are used to simulate the handling of crates, palletized loads, and rail car carriers. Several sizes are available for testing palletized loads and single products up to 12,000 lbs. (5,454 kg). Our complete line of impact recording instrumentation will also provide you with the qualitative results and documentation required to substantiate the performance of your product or packaged system.
Learn MoreKey Features
Features

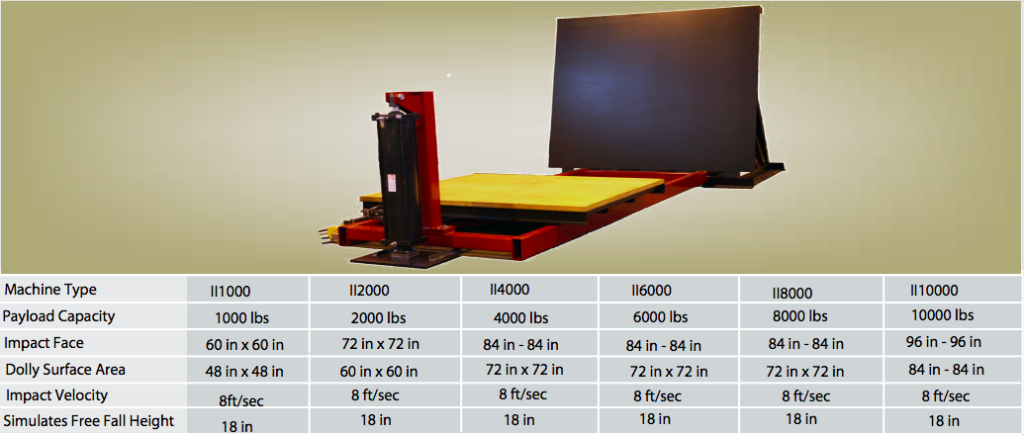

- L.A.B. offers standard models of 1,000, 2,000, 4,000, 6,000 and 8,000 pounds. Extended payloads up to 12,000 pounds available.
- Backstops (impact walls) range from 4 x 4 feet up to 10 x 10 feet.
- Dolly sizes of 48 x 48 inches up to 108 x 108 inches
- Maximum velocity 8 ft/sec (2.4 m/sec)
Available Options
For further information on options available for this Product, please contact our specialist sales team on:
+44 (0) 1462 481859 or
