Models
- DM340 ES /
- DM340 ES C /
- DM600 ES /
- DM600 ES C /
- DM1200 ES /
- DM1200 ES C
Specifications
Click HereProduct Overview

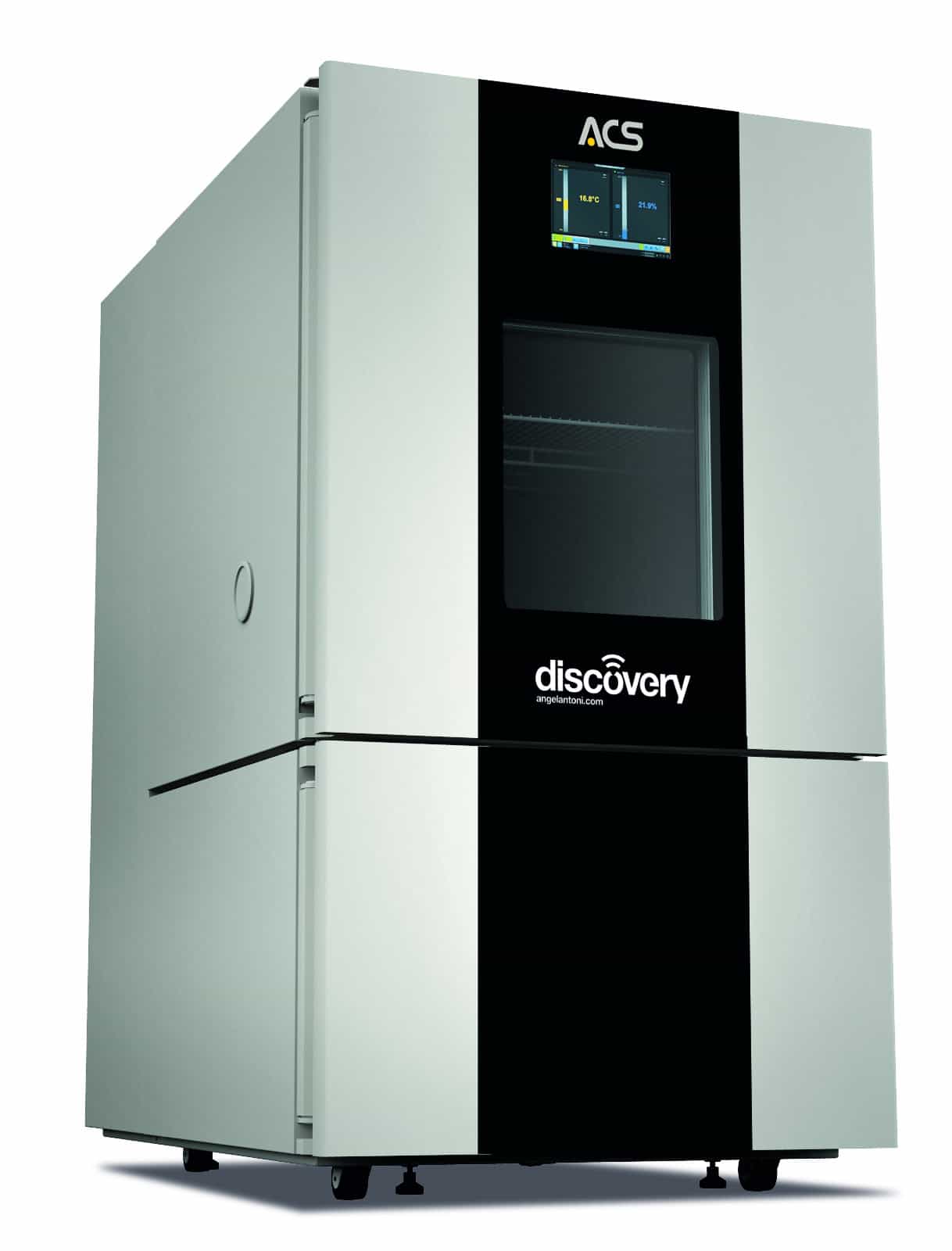

“ES” series has been designed for Environmental Stress (ESS) an is ideal for reliability growth processes where temperature rates of change of 5 degrees a minute are pre requisite. All of the chambers in the “ES” range are equipped with air condensers, except for the 340 l model where water condensation is required to maintain a compact footprint.
Benefits
- Cutting-edge control software, allowing to manage, monitor, assist the chamber in any place at any time in multiple ways (WiFi, Ethernet, mobile network)
- Maximum safety of tests, thanks to door opening by personal codes and settable temperature limits
- Full range of performances matching all requirements from stability tests to the most severe stress screening applications
- Specific test outfits exist already for Batter Testing, Fast Cooling by LN2, Solar Simulation Testing and Air Conditioning units.
Control System
MyKratos™ control software makes it possible to manage, monitor and assist the chamber anywhere, at any time, in multiple ways via the on-board panel and desktop/mobile devices (Wi-Fi, Ethernet, mobile network). The chamber wireless (Wi-Fi) connection permits operation using tablets and smartphones (iOS or Android compatible).
The operator interface can also be remotely accessed through a chamber connection to the customer’s LAN or via mobile network (on activation of a SIM card data). It includes the MyAngel24™ interactive assistance system.
Main Features
- Wi-Fi or Ethernet connection to the chamber
- Visualization and graphical analysis of measures and recordings
- Synoptic charts of the entire system
- Multilanguage support
- High configurability of chamber parameters
- Unlimited measures recording possibilities
- Program and Manual chamber operation modes
- Delayed start of a program
- Possibility to select more than one chamber from a single Tablet: secure access by means of multiple password levels
- Automatic notifications of event and alarms
- Archive manager for easy access to the stored recordings
- Possibility to send email notification
- Possibility to send SMS notification(SIM card required)
- Multi-chamber management
- System available in several languages
Test Program Editor
- Unlimited possibilities for storing cyclesof 350 segments delaying their execution
- Internal repetitions of 10 groups of segments up to 999 times each
- Possibility to upload, edit, export, and delete already existing cycles and recordings
- Graphic and numeric profile parameters data entry
Graphic Functions (Graphic Viewer)
- Live data update of measures on the charts
- Graphic charts or numeric table representation views on the monitor
- Graphic cursor for in-chart datameasurements and evaluations
- Calculation of Measure Slopes and report generation.
- Enable/disable of chart display
- Zoom in, zoom out and scroll functions
Export function to convert the MyKratos™ log file into ASCII format (usable in Excel or other applications)
Key Features
- Control and management system and interfaces
Controlled by PLC and Advanced HMI - Remote access
There is a wide range of possibilities thanks to the built-in MyKratos™ and MyAngel24™; multichamber control also available upon request - Electromagnetic closing system
Ensures the security of environmental tests - Air treatment system
Ensures a precise control of the climatic parameters inside the chamber with minimal thermal inertia; an axial fan allows rapid temperature variations of both air and specimen. - Humidification system (only climatic version)
The humidifier with a self-contained heater and dedicated controlling S/W offers two great advantages:- it does not require distilled or demineralised water to operate properly
- it uses ‘dry’ vapour in order to avoid condensation on the specimens and to reproduce real environmental conditions
Basic Configuration
- MyKratos™ and MyAngel24™
- Electromagnetic closing system
- Inspection window
- Self-pivoting wheels and feet
- Air condenser
- Internal light
- Self feeding system (town waterthrough chamber embedded softener)
- No. 1 internal grid shelf
- Humidification water recycling system
- Min/max digital thermostat withindependent probe
- Silicone portholes
- Auxiliary free contacts
- Ethernet port
- RS232 serial interface
Available Options
- Additional portholes
- UV lamp
- Handling port hole (availablefor models from 500 litres up)
- Internal shelves
- Water condenser
- Reinforced floor
- Capacitive probe
- Notch
- Set of no.4 analogic inputs
- Set of no. 4 PT100 inputs
- Set of no. 4 PT100 probes
- Set of no. 8 auxiliary contacts
- No break power unit for PLC
- Temperature extension to +200°C
- Air fan motor speedadjustment
- Air flow booster
- Specimen switching off in case of chamber alarm
- Compressed air dehumidification kit
- T e RH analogicretransmission
- Surface cleaning set
