Specifications
Click HereProduct Overview

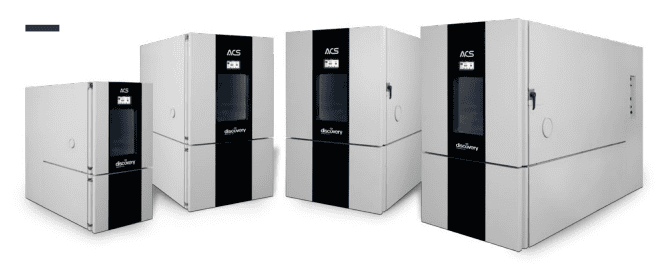

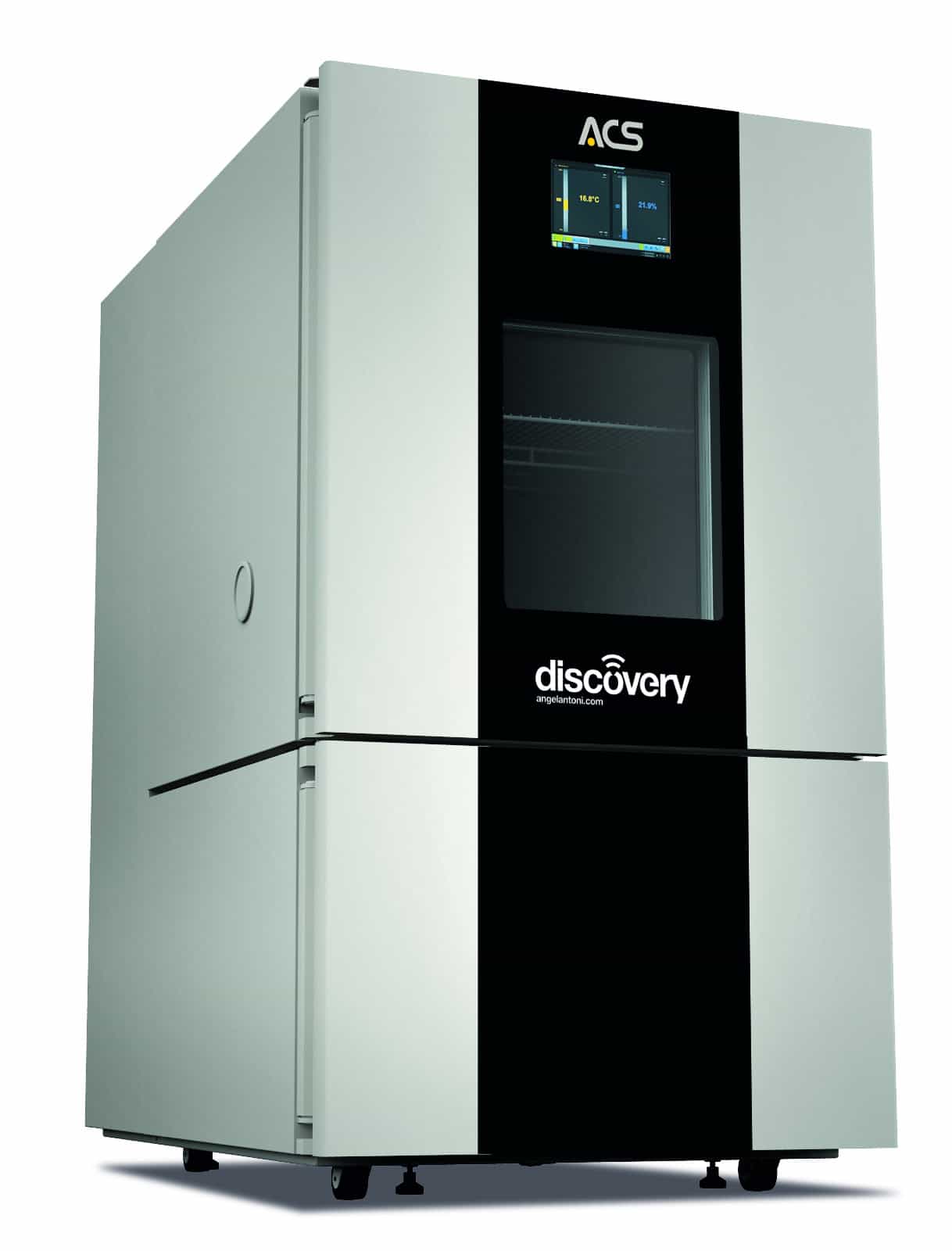

Energy Saving “E” series has the essential environmental chamber performance and is specifically designed for general purpose applications where excessively high temperatures or fast ramp rates are not required. The “E” series is ideal for climatic tests at steady states and for use in a wide range of applications, such as Tropical tests in pharmaceutical products, and a wide range of tests in the plastics, rubber, paper and semiconductor industries.
Benefits
- Cutting-edge control software, allowing to manage, monitor, assist the chamber in any place at any time in multiple ways (WiFi, Ethernet, mobile network)
- Maximum safety of tests, thanks to door opening by personal codes and settable temperature limits
- Full range of performances matching all requirements from stability tests to the most severe stress screening applications
- Specific test outfits exist already for Batter Testing, Fast Cooling by LN2, Solar Simulation Testing and Air Conditioning units.
Control System
MyKratos™ control software makes it possible to manage, monitor and assist the chamber anywhere, at any time, in multiple ways via the on-board panel and desktop/mobile devices (Wi-Fi, Ethernet, mobile network). The chamber wireless (Wi-Fi) connection permits operation using tablets and smartphones (iOS or Android compatible).
The operator interface can also be remotely accessed through a chamber connection to the customer’s LAN or via mobile network (on activation of a SIM card data). It includes the MyAngel24™ interactive assistance system.
Main Features
- Wi-Fi or Ethernet connection to the chamber
- Visualization and graphical analysis of measures and recordings
- Synoptic charts of the entire system
- Multilanguage support
- High configurability of chamber parameters
- Unlimited measures recording possibilities
- Program and Manual chamber operation modes
- Delayed start of a program
- Possibility to select more than one chamber from a single Tablet: secure access by means of multiple password levels
- Automatic notifications of event and alarms
- Archive manager for easy access to the stored recordings
- Possibility to send email notification
- Possibility to send SMS notification(SIM card required)
- Multi-chamber management
- System available in several languages
Test Program Editor
- Unlimited possibilities for storing cyclesof 350 segments delaying their execution
- Internal repetitions of 10 groups of segments up to 999 times each
- Possibility to upload, edit, export, and delete already existing cycles and recordings
- Graphic and numeric profile parameters data entry
Graphic Functions (Graphic Viewer)
- Live data update of measures on the charts
- Graphic charts or numeric table representation views on the monitor
- Graphic cursor for in-chart datameasurements and evaluations
- Calculation of Measure Slopes and report generation.
- Enable/disable of chart display
- Zoom in, zoom out and scroll functions
Export function to convert the MyKratos™ log file into ASCII format (usable in Excel or other applications)
Discovery My Specifications
