Product Overview

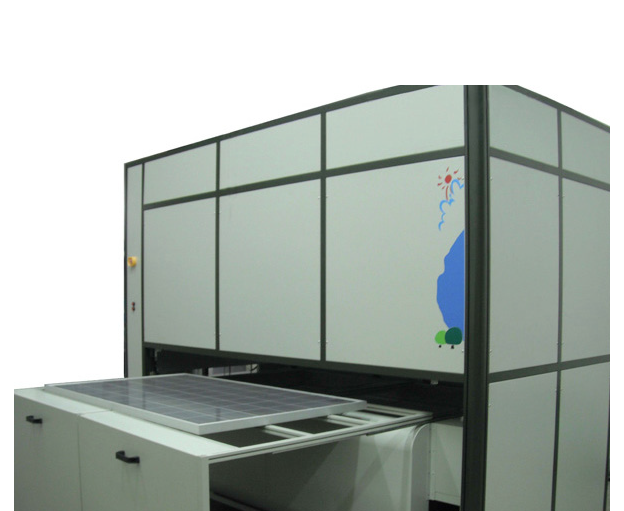

The King Design Class AAA Solar Simulator is a Complete Solar / Photovoltaic Solar Simulator.

Using a Plasma light source to test solar panels, King Design’s Solar Simulator offers a test solution that meets IEC 60904-9 and IEC 61646, 61215 Class A standards without a filter.

The KD Simulator is also capable of testing panels to all of the following IEC61646 clauses 10.2,10.4,10.6,10.9 and light soaking test 10.19

Photovoltaic and Solar panels up to a size of 3.0 meters by 2.4 meters can be tested to adjustable levels ranging from 500W/m2 to 1200W/m2.

The Solar Simulator is made from three main components:

1. A High efficiency plasma lamp array, fitted with bulbs that emit a Class B spectrum when operated at 800 – 1100 W/m2

2. A reflector box homogenizes the diffuse light from the lamps to ensure uniformity and spectrum onto the test specimen. The reflector box is built with a mechanical structure and cabling elements dedicated to the light-engine array.

The sample surface is placed 20mm under the reflector edge. A door gives the user full access to the illuminating chamber when the system is non-operational.

3. The sample holder is air-cooled via a chiller unit to control and maintain a consistent temperature during the illumination tests.

:

Learn More

Key Features

  • 25,000 Hours plasma lamp lifetime
  • High-Efficiency Plasma Lamp Array capable of a stable Class A Spectrum , without filter
  • Total illuminated area up to 3.2m x 2.6m
  • Sample area up to 3.0m x 2.4m
  • Warm up time is 100 Seconds



Available Options

  • Individual Solar Cell Testers
  • 3-1 HALT an Hass Solar Simulator
  • Custom Simulators for variable panel sizes
