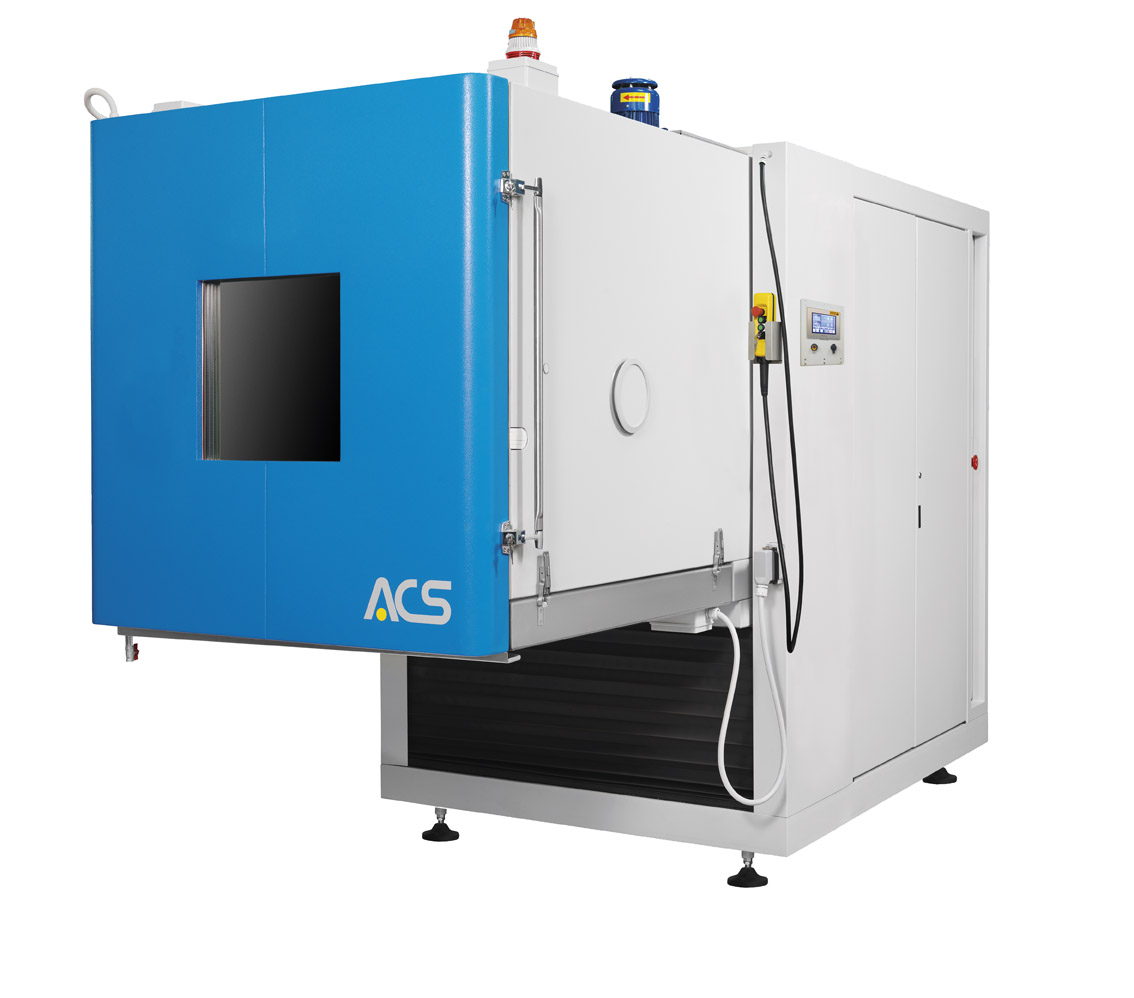

ACS Vibration Test Chambers

1. For Temperature only version add T to the suffix
2. t=+4°C/+94°C for continuous test
3. Measured at 1 m distance in front of the unit in 1,6 m height, free field measurement
4. According to IEC 60068-3-5 and IEC 60068-3-6
5. The performance data refer to +22°C ambient temperature, 400V nominal voltage, without specimen
6. With water at T +29°C and temperature difference at 5°C (water temperature range +12÷+29°C)
7. With test cabinet in the highest position

These chambers can be supplied with the new ecological refrigerant gas R472B, having a GWP of 526.

• Very easy operation
  A worm screw type of lifting system, managed by the touch screen control panel, allows to adapt the test cabinet to the shaker height. It is also possible to add horizontal movement on request. This is especially valuable if your shaker allows both vertical and horizontal movement or if you want to use more shakers with the same chamber.
• Great flexibility
  Different removable floors, for vertical and horizontal vibrations, can adapt the chamber to any existing standard shakers. If there is the need to use the chamber without the shaker in place, a blind floor is available. The test cabinet movement is managed by the detachable control panel located on the right side of the chamber.
• Standard models
  The available volumes are 600, 1200 and 2200 litres; the temperature range is from 70 to 180°C, while the humidity range is from 10% to 95% (in the temperature range of +10/+95°C). No. 3 choices of temperature change rate are available: 5, 10, or 15°C/minute.

• Wide range of accessories
  Besides the main accessories included in the basic Configuration, ACS vibration test chambers can be equipped with several options to make them fit to customer specific needs.

• Innovative Control System
  Industry demands smart solutions for managing and maintaining distributed networks of people, machines, and processes. The ACS solution for the Internet of Things is the unique-in-the-market MyKratos™ software, making it possible to manage, monitor and assist a test chamber in any place at any time, from mobile and desktop devices, using any kind of connection (Wi-Fi, Ethernet or mobile networks).

• MyKratos™ including MyAngel24™
• Inspection window multiple-crystal, with double heated transparent film, 450h X 450 mm size
• Internallighting
• Feet
• Liftingsystem for a positioning in height of the chamber continuously and precisely on the shaker
• Closing mechanical, with large handle
• Thermostat max./min. digital thermostat with independent probe
• Removablefloor the floor for vertical vibrations has a hole equipped with a plug to permit tests even without the shaker
• Siliconeportholes 80 mm (left side) and 150 mm diameter (right side) fitted with rubber cap. They allow internal-external electrical, mechanical or hydraulic connections
• Auxiliarycontacts (specimens, alarms, run shaker)
• Interface Ethernet port for remote control system connection
• Watercondenser

• Additional portholes 80 and 150 mm, see drawing for available positions
• Handling port holes no. 2 max, 125 mm of diameter, they are positioned on the door under the inspection window, allowing the handling of specimens inside the chamber
• Set of no. 4 analogic inputs 0÷10V for user’s data acquisition (no. 1 set max)
• Set of no. 4 PT100 inputs (no. 1 set max)
• Set of no. 8 auxiliary contacts (no. 1 set max)
• No break power unit for PLC
• Floor for horizontal vibrations with fixed square opening depending on model (no closing plug provided)• Compressed air dehumidification for continuous tests with low temperature
• Manual or automatic horizontal movement manual or automatic track translation system, to simplify the operations of positioning the chamber on the shaker
• Door electro-magnetic closing system
• Specimen switching off in case of chamber alarm
• Remote air condenser
• MyKratos™ Multichambersoftware: installed in a PC to monitor and control multiple chambers (to be supplied upon request)

MyKratos™ control software makes it possible to manage, monitor and assist the chamber anywhere, at any time, in multiple ways via the on-board panel and desktop/mobile devices (Wi-Fi, Ethernet, mobile network). The chamber wireless (Wi-Fi) connection permits operation using tablets and smartphones (iOS or Android compatible).

The operator interface can also be remotely accessed through a chamber connection to the customer’s LAN or via mobile network (on activation of a SIM card data). It includes the MyAngel24™ interactive assistance system.

Main Features

• Wi-Fi or Ethernet connection to the chamber
• Visualization and graphical analysis of measures and recordings
• Synoptic charts of the entire system
• Multilanguage support
• High configurability of chamber parameters
• Unlimited measures recording possibilities
• Program and Manual chamber operation modes
• Delayed start of a program
• Possibility to select more than one chamber from a single Tablet: secure access by means of multiple password levels
• Automatic notifications of event and alarms
• Archive manager for easy access to the stored recordings
• Possibility to send email notification
• Possibility to send SMS notification(SIM card required)
• Multi-chamber management
• System available in several languages

Test Program Editor

• Unlimited possibilities for storing cyclesof 350 segments delaying their execution
• Internal repetitions of 10 groups of segments up to 999 times each
• Possibility to upload, edit, export, and delete already existing cycles and recordings
• Graphic and numeric profile parameters data entry

Graphic Functions (Graphic Viewer)

• Live data update of measures on the charts
• Graphic charts or numeric table representation views on the monitor
• Graphic cursor for in-chart datameasurements and evaluations
• Calculation of Measure Slopes and report generation.
• Enable/disable of chart display
• Zoom in, zoom out and scroll functions

Export function to convert the MyKratos™ log file into ASCII format (usable in Excel or other applications)
