6DX PRO – 6 Degrees of Freedom Sensor Package

Product Overview

This product is designed for use with the DTS Software.

The 6DX PRO, manufactured by DTS is an Ultra-small 6 Degrees of Freedom Sensor Package.

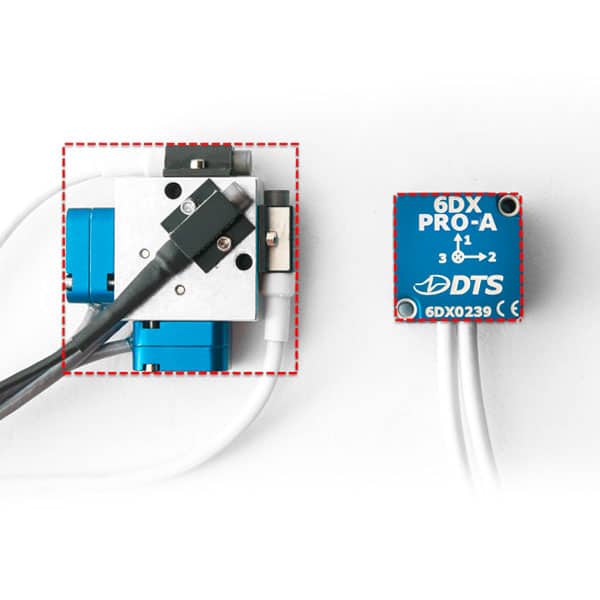

World’s smallest, high shock tolerant six degrees of freedom sensor (6DOF) package. The low mass 6DX PRO-A includes three angular rate sensors, plus three accelerometers in a rugged enclosure designed for dynamic testing.

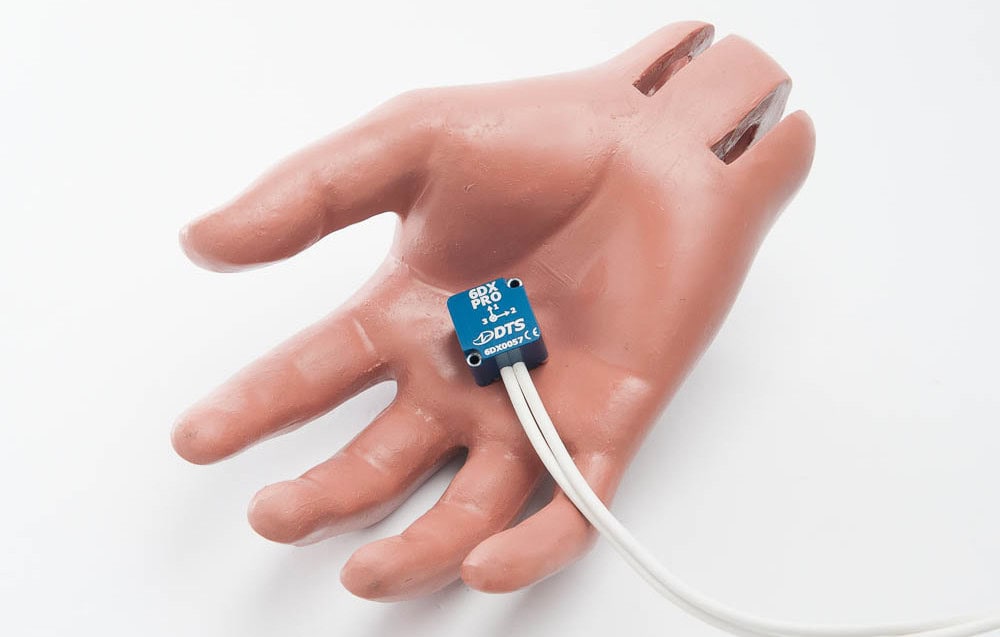

The 6DX PRO features three linear accelerometers and three angular rate sensors conveniently packaged in a compact, high-shock enclosure. Designed to meet the rigorous demands of dynamic test environments, the DTS 6DX PRO offers two range options. The 6DX PRO is ideal for in-manikin, cadaver and blast testing.

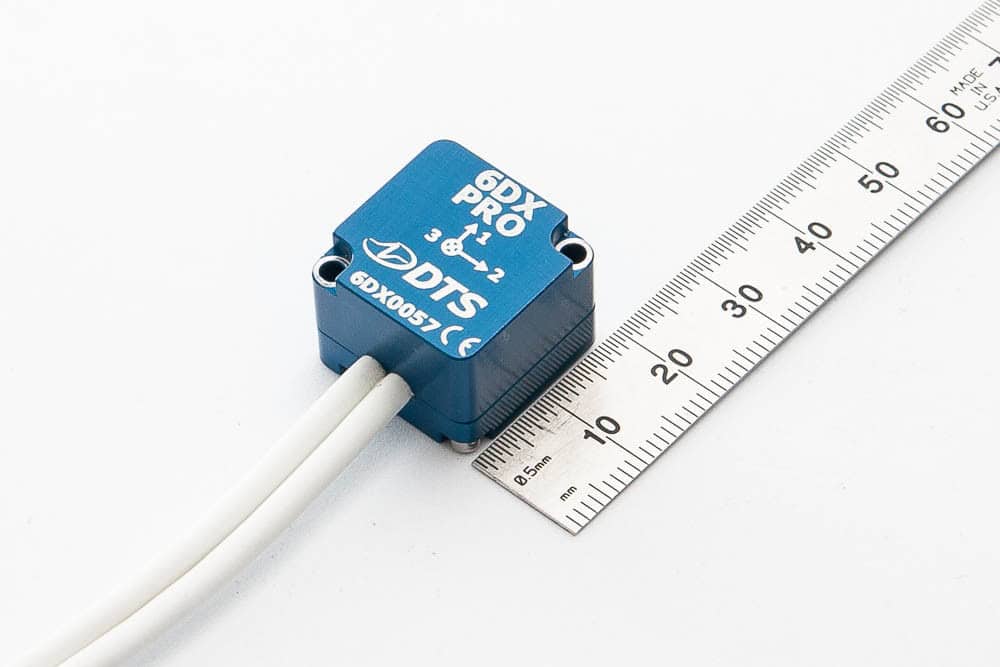

This Ultra-Small 6DOF Sensor package has been designed for applications measuring high rates of shock and angular velocity, the DTS 6DX PRO packages three accelerometers and three angular rate sensors in a compact and convenient 19 x 19 x 14.5 mm package.

Sensor Cables

Each sensor cable is 23 feet long and terminates to a single triaxial connector. Pigtail or adapter cables are available to support a range of termination options.

Markets

Blast testing, Impact testing, Pedestrian, Ride & handling

Request a Quote

Product Resources

DTS Datasheet - 6DX PRO (2015-03)

Data Sheet

DTS DATASHEET- 6DX PRO - A (2022)

Data Sheet

Physical	19 x 19 x 17.4 mm, 14 g
Features	Triaxial accelerometer + triaxial angular rate, compact rugged aluminum enclosure, high performance
Accelerometer	Range: ±500 g, triaxial Bandwidth: 0-5000 Hz, DC Response
Angular Rate	Ranges: ±300/±1500/±8K/±18K/±50K deg/sec, triaxial Bandwidth: 0-2000 Hz, DC response
Excitation	4.9-14 V
Current	Nominal 2 mA per Accel axis, 4 mA per ARS axis
Shock Rating	10000 g
Environmental	-40°C to 85°C, IP67
Performance	Meets SAE J211, ISO 6487, NHTSA & FAA data acquisition requirements
Connectors	Adapter cable with pigtails or connectors of choice

Incredibly compact and lightweight
Ideal for high impact testing
IP67 Rated: dust protection and water immersion. The sealed enclosure is also ideal for cadaveric work
Available in two range options:
- 6DX PRO 2K-18K
  - 3 accelerometers: ±2000 g
  - 3 angular rate sensors: ±18000 deg/sec
- 6DX PRO 20K-50K
  - 3 accelerometers: ±20000 g
  - 3 angular rate sensors: ±50000 deg/sec
Factory repair of sensor channels available
DTS re-calibration services available, NIST traceable
Meets NHTSA, FAA, ISO 6487 and SAE J211 practices

High Performance	• Ultra-small, low mass, high shock tolerant
	• Triaxial accelerometer + triaxial angular rate sensors in a single enclosure
	• Ideal for high rate measurements
Versatile	• Multiple sensor ranges and bandwidth options available
	• User-specified connector
	• Ideal for in-dummy, PMHS or blast testing

Options

Triax Cable Assembly

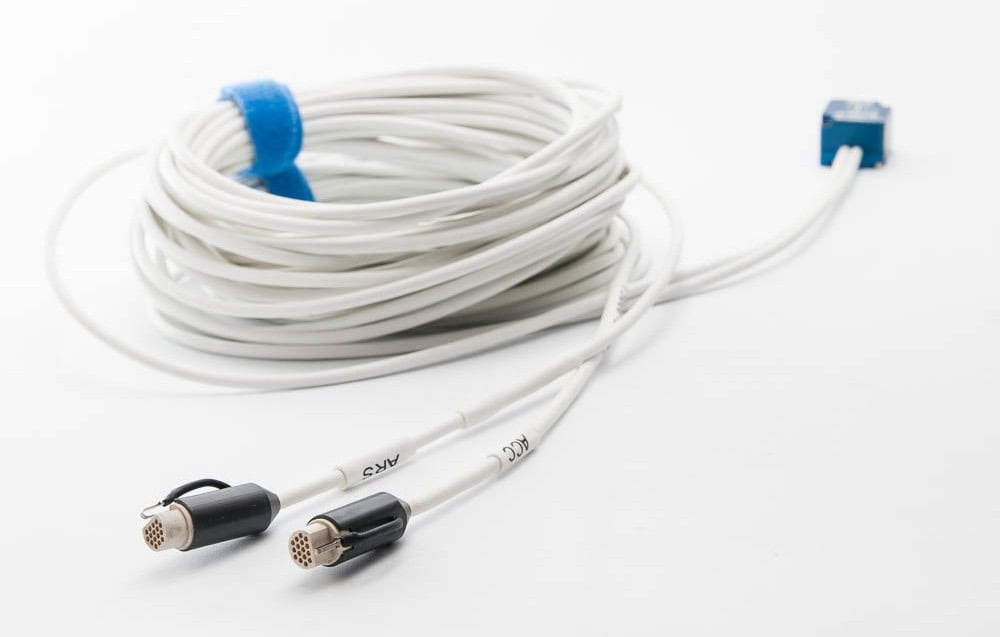

Supports power, event and communication. Available in a variety of lengths and connector options or pigtail. Shown with the 6DX PRO-A.
